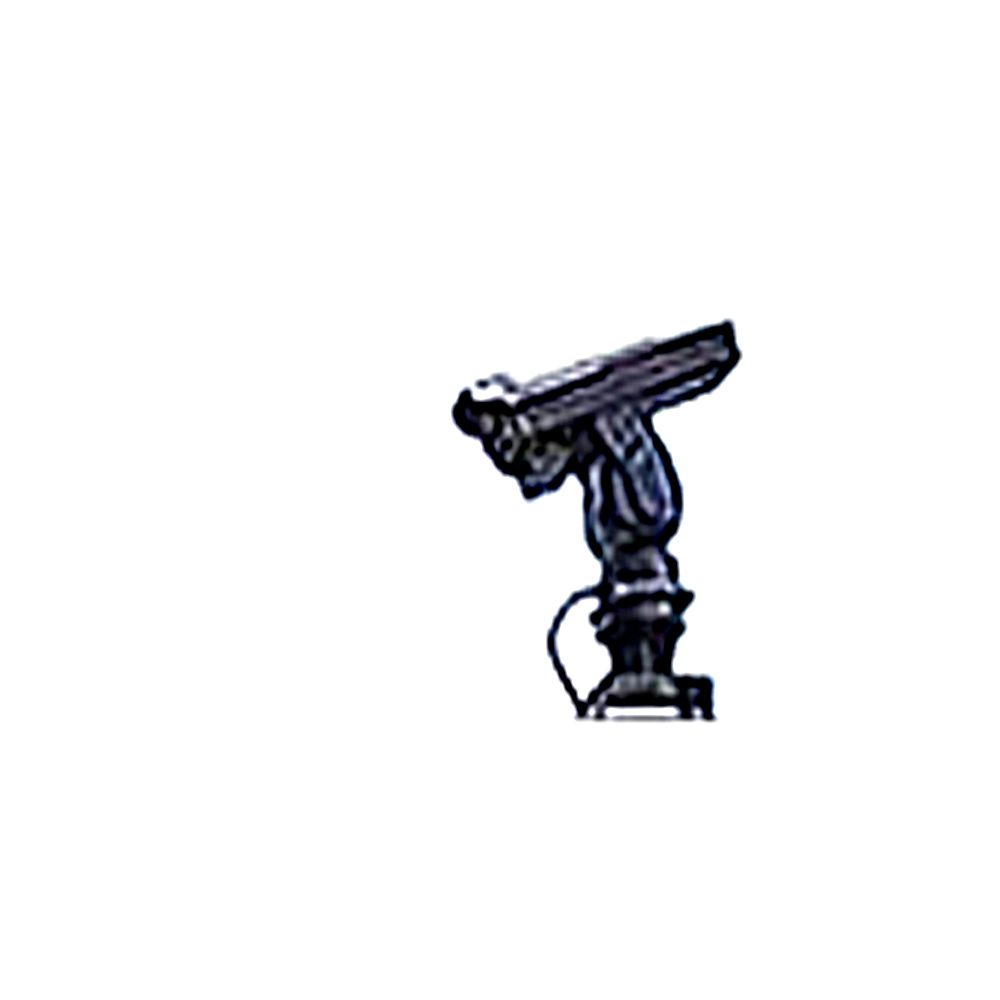

Smart City Traffic Signs And Pole Multifunctional Traffic Sign Street Poles with cctv camera

The integrative traffic light pole merges traffic sign and signal light functions.

 It is extensively utilized in traffic systems.

The pole can be customized in various lengths and specifications to meet specific requirements.

It is made of high-quality steel material.

It features a distinctive optical system and ensures high uniformity of chromaticity.

Share to :
Facebook
Twitter
LinkedIn

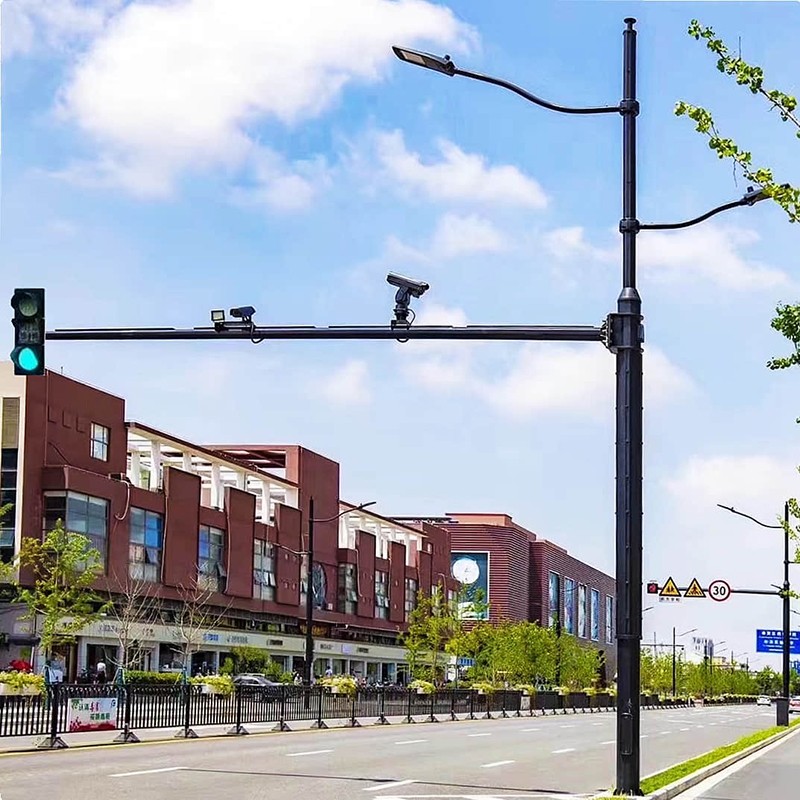

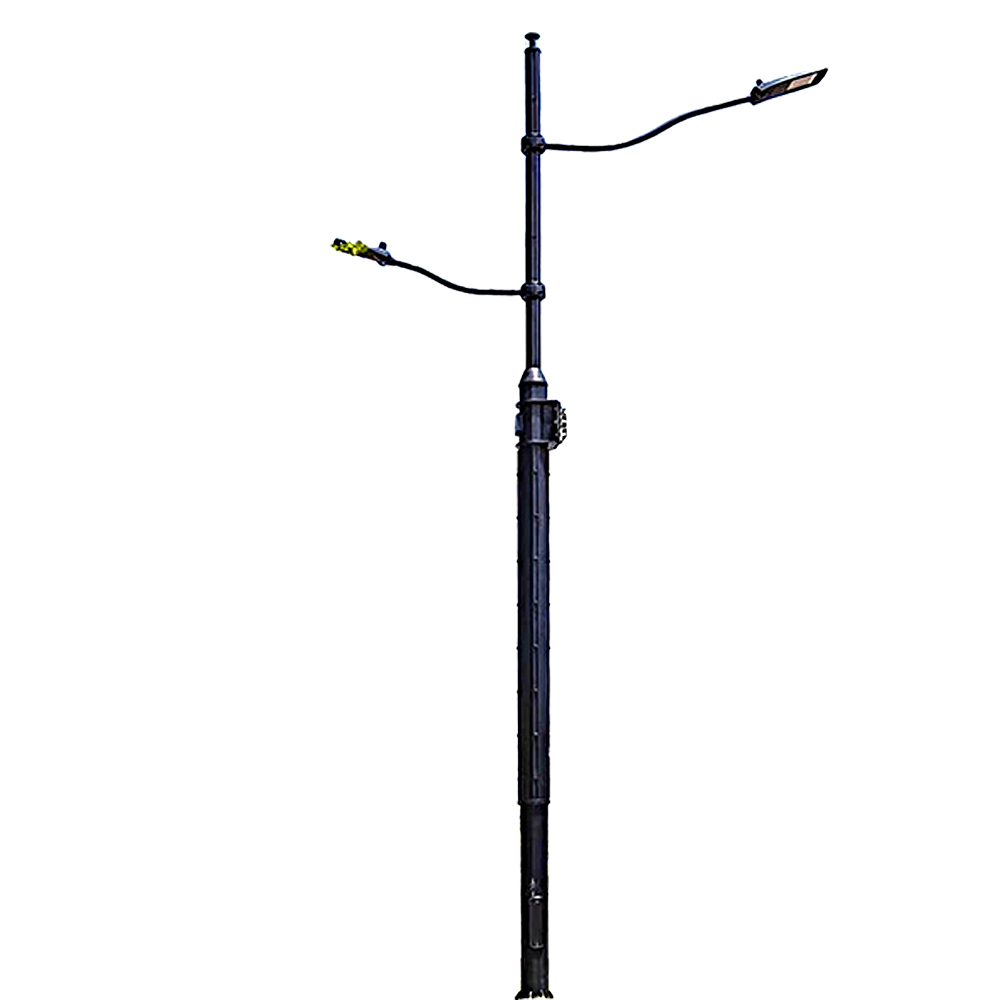

Multi-functional street lamp is a new type of product which takes the pole of street lamp as its main pole member and realizes the integration of traffic, public security, and communication resources, thereby solving the problem of too large number of poles along roads.



Take 10m LED 120W as an example:

Lamp pole

Steel: Q235A

Light source height: 10m

Pole diameter:

Round pipe 180、219mm,

Square pipe 150、180、200、220、250mm……

Thickness of lamp pole: 4.0mm

Side length of bottom flange: 550*550mm

Thickness of bottom flange: 30mm

Cantilever length of lamp: 1.2m-1.8m

Height of horizontal rod from ground: 6.5m

Length of horizontal rod: Varying with the width of road

Function of horizontal rod: For the installation of traffic lights or road signs

Function of upright rod: Equipped with aluminum-alloy slot for easy installation of flag, display screen, etc.

Wind-resistant capability of lamp pole: 36.9 m/s

Anti-seismic intensity: 8

Welding mode: Automatic submerged-arc welding

Anti-corrosion treatment: Pickling + internal and external hot galvanization + passivation + electrostatic plastic spraying

Thickness of zinc coating: ≥86um

Thickness of sprayed plastic coating: ≧100um

Appearance: Smooth surface, hardness≧2H

Lamp

Lamp dimensions:  860×380×12mm

Lamp material: High-quality aviation aluminum + tempered glass

Heat dissipation system: Heat conduction by high-quality aviation aluminum

Switching-on mode: Hasp mode

Protection grade: IP65

Anti-corrosion grade of housing: WF1

Anti-electric shock grade: Class I

Light distribution curve: 140° -- 60°

Light-emitting angle: 110°-120°

Connecting diameter: ¢60mm

Connecting depth: 110mm

Light source power: 120W

Rated voltage: 220V

Frequency: 50-60HZ

Light source type:

Drive power:

LED junction temperature: <60℃

Luminous power: 110-120Lm/W

Initial luminous flux: 15000lm

Luminous efficiency: >95﹪

Color temperature: 3000-6500

Color rendering index: Ra75﹪

Power factor: ≥0.95

Light color: normal white/warm white

Operating ambient temperature:-40℃~+50℃

Remarks:

The above are only conventional parameters, and the commonly used height and power of users are 6--12m and 30--240W, respectively. Lamps with different heights, power, diameters, and needed functions can be customized according to user requirements and use environment.

Price description:

Since street lamps are non-standard products that can be customized with different heights, power, etc. according to user requirements, no factory has a fixed price list.

Please first choose the style, and tell us your simple requirements, or tell us your use environment; then we will recommend relevant style and parameters for you and offer you a quote.

For specific price consultation, please contact us.
