Aesthetically pleasing, secure, and fulfills the multi-functional requirements.
The pole structure possesses the strength to withstand the strongest winds within a fifty-year period.
Structural waterproofing is employed between all equipment and the pole.
Reserved installation slots and information interfaces, ensuring high compatibility.
Utilizes a modular and detachable design for easy maintenance.

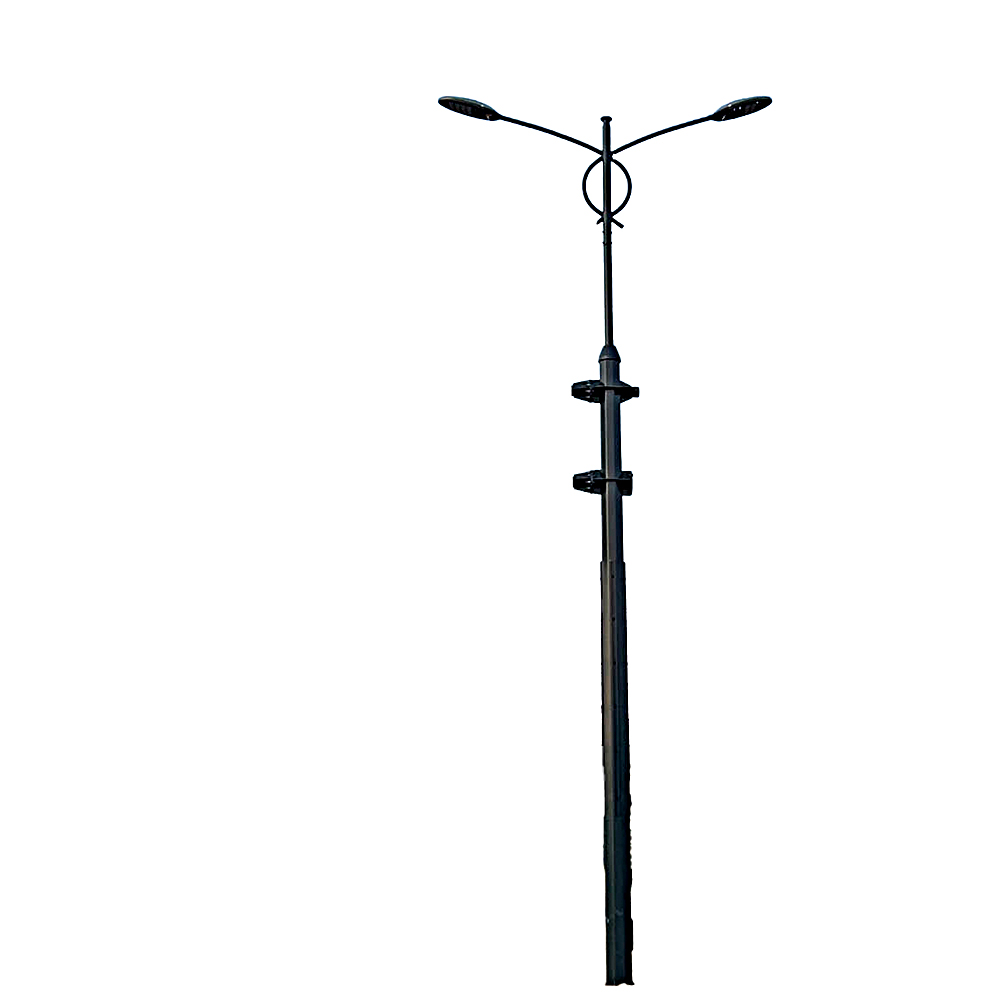

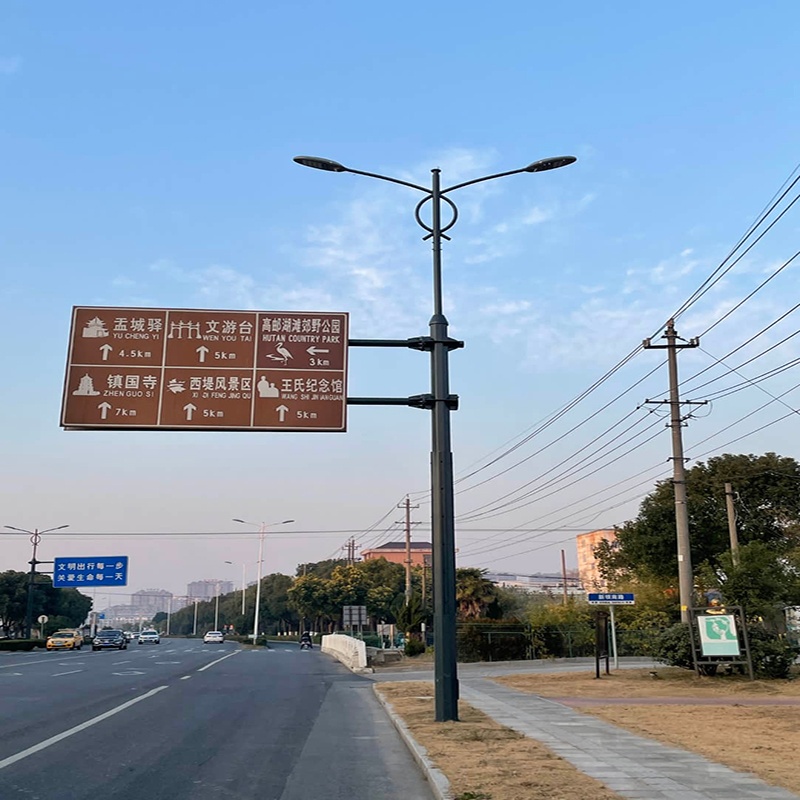

| Multi-functional street lamp is a new type of product which takes the pole of street lamp as its main pole member and realizes the integration of traffic, public security, and communication resources, thereby solving the problem of too large number of poles along roads.
Take 10m LED 120W as an example: |
|
| Lamp pole

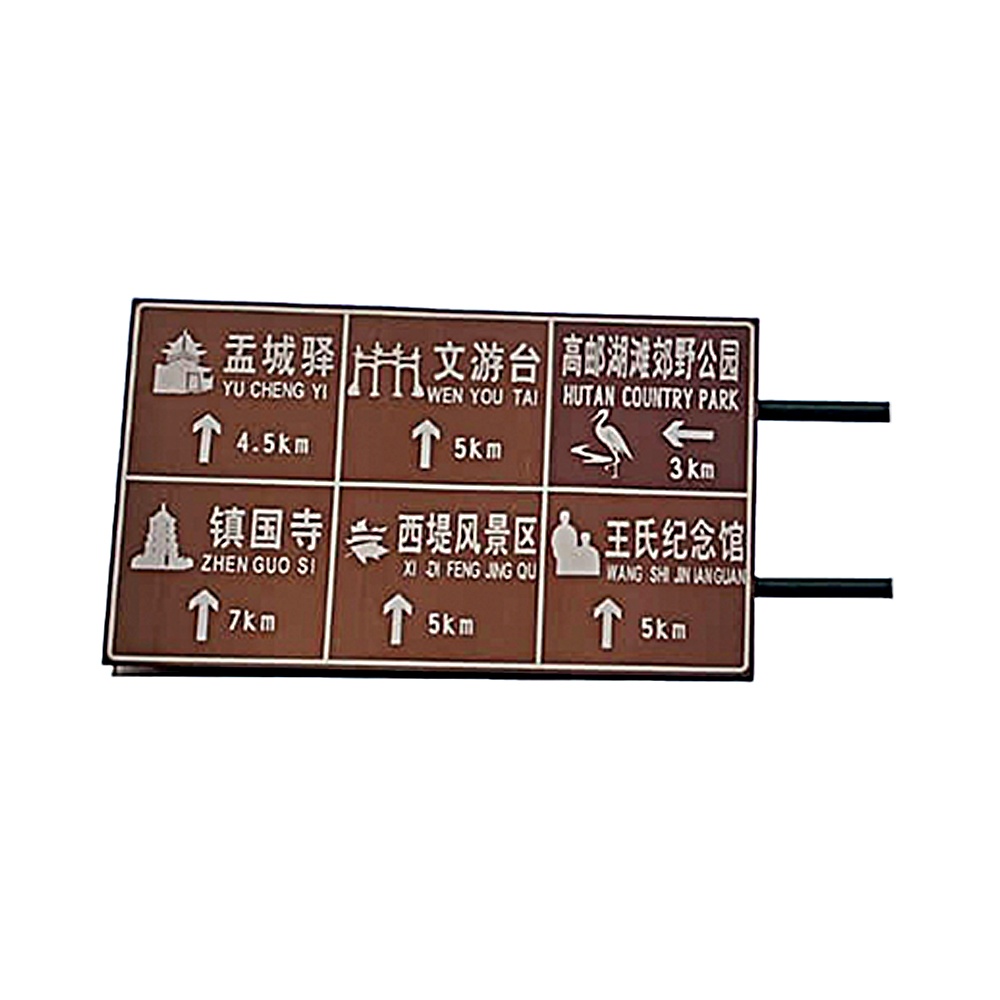

Steel: Q235A Light source height: 10m Pole diameter: Round pipe 180、219mm， Square pipe 150、180、200、220、250mm…… Thickness of lamp pole: 4.0mm Side length of bottom flange: 550*550mm Thickness of bottom flange: 30mm Cantilever length of lamp: 1.2m-1.8m Height of horizontal rod from ground: 6.5m Length of horizontal rod: Varying with the width of road Function of horizontal rod: For the installation of traffic lights or road signs Function of upright rod: Equipped with aluminum-alloy slot for easy installation of flag, display screen, etc. Wind-resistant capability of lamp pole: 36.9 m/s Anti-seismic intensity: 8 Welding mode: Automatic submerged-arc welding Anti-corrosion treatment: Pickling + internal and external hot galvanization + passivation + electrostatic plastic spraying Thickness of zinc coating: ≥86um Thickness of sprayed plastic coating: ≧100um Appearance: Smooth surface, hardness≧2H |
Lamp
Lamp dimensions: 860×380×12mm Lamp material: High-quality aviation aluminum + tempered glass Heat dissipation system: Heat conduction by high-quality aviation aluminum Switching-on mode: Hasp mode Protection grade: IP65 Anti-corrosion grade of housing: WF1 Anti-electric shock grade: Class I Light distribution curve: 140° -- 60° Light-emitting angle: 110°-120° Connecting diameter: ￠60mm Connecting depth: 110mm Light source power: 120W Rated voltage: 220V Frequency: 50-60HZ Light source type: Drive power: LED junction temperature: ＜60℃ Luminous power: 110-120Lm/W Initial luminous flux: 15000lm Luminous efficiency: ＞95﹪ Color temperature: 3000-6500 Color rendering index: Ra75﹪ Power factor: ≥0.95 Light color: normal white/warm white Operating ambient temperature:－40℃～＋50℃ |
| Remarks:
The above are only conventional parameters, and the commonly used height and power of users are 6--12m and 30--240W, respectively. Lamps with different heights, power, diameters, and needed functions can be customized according to user requirements and use environment. |
|
| Price description:
Since street lamps are non-standard products that can be customized with different heights, power, etc. according to user requirements, no factory has a fixed price list. Please first choose the style, and tell us your simple requirements, or tell us your use environment; then we will recommend relevant style and parameters for you and offer you a quote. For specific price consultation, please contact us. |
|
