The light source height from the ground is from 3m to 30m
Without 16m once forming without slip joint
The thickness is from 2.5mm to 20mm
The surface treatment is galvanized with powder-coated
Generally can be divided into lifting type and non-lifting type
Take H 6.5m + L 6m as an example: | |

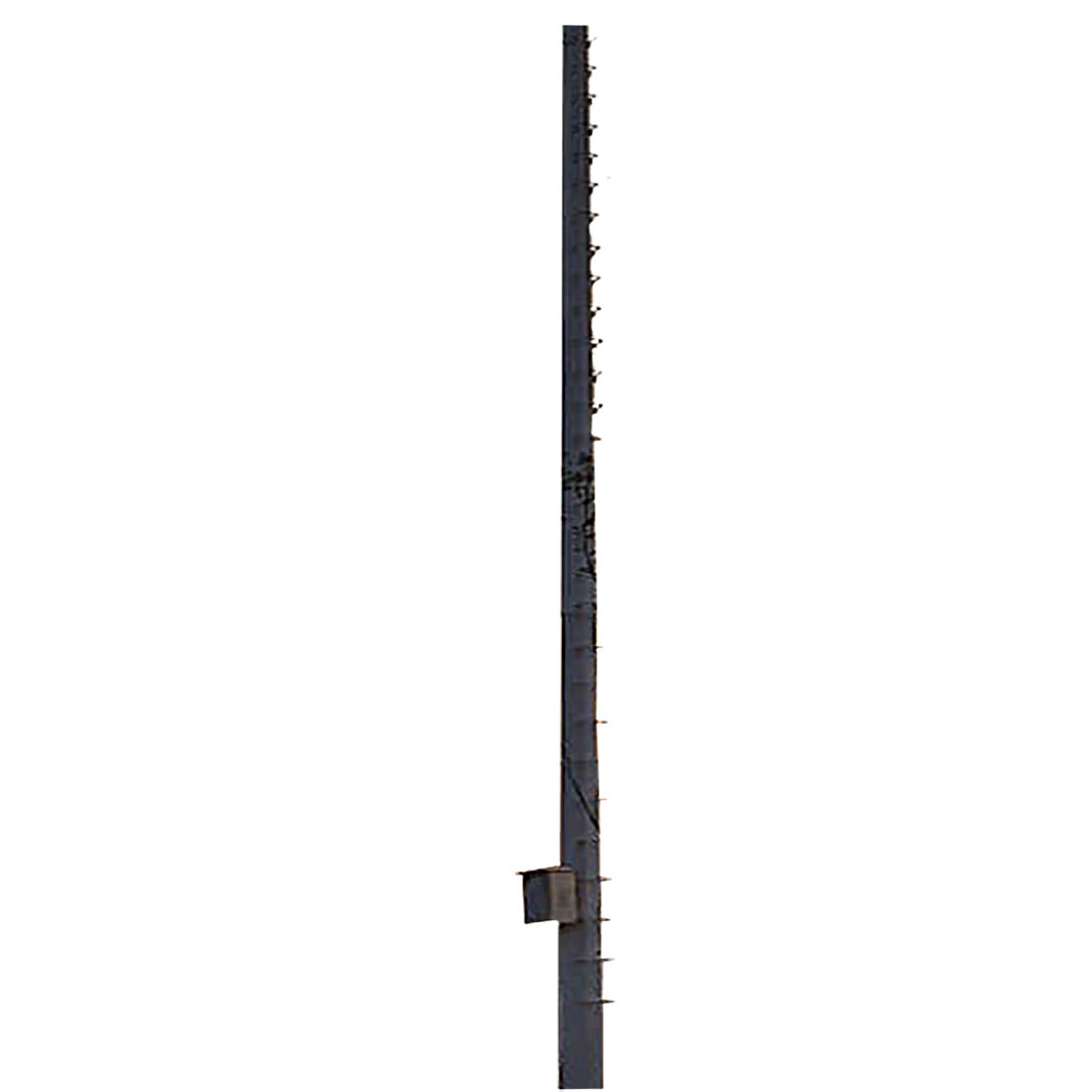

Lamp pole
Steel:Q235A Diameter of upright rod: 220-280mm Thickness of upright rod: 5mm Diameter of horizontal rod: 100-200mm Thickness of horizontal rod: 4mm Diameter of bottom flange: 550mm Thickness of bottom flange: 18mm Connecting flange: 300*300mm Welding mode: Automatic submerged-arc welding Anti-corrosion treatment: Pickling + internal and external hot galvanization + passivation + electrostatic plastic spraying Thickness of zinc coating: ≥86um Thickness of sprayed plastic coating: ≧100 um Appearance: Smooth surface, hardness ≧ 2H |

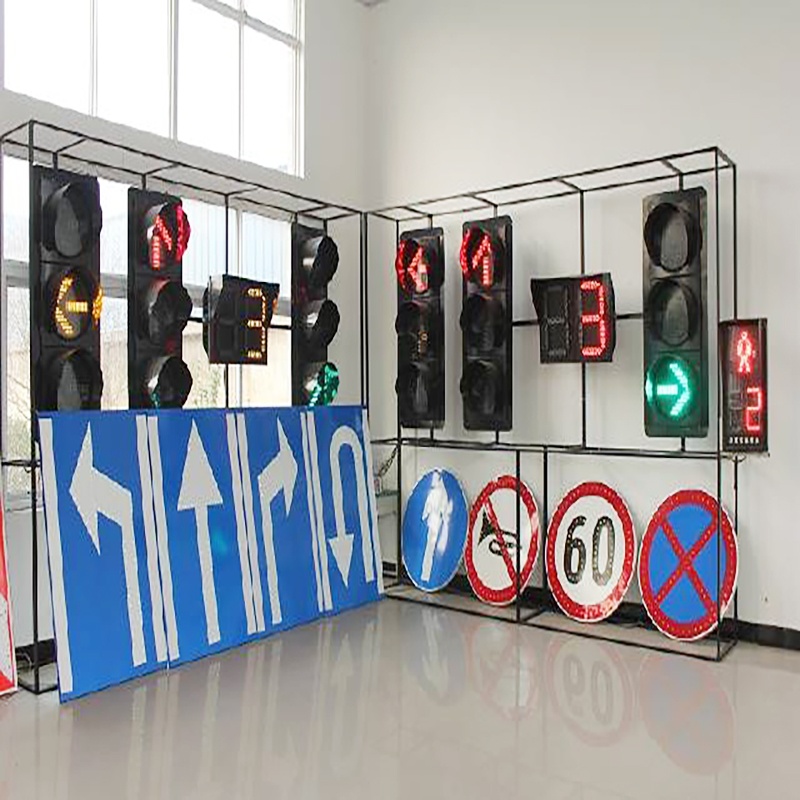

Traffic light:
Form: Combination of red, green, and yellow Housing: Aluminum alloy or PC Dimensions: 1050*350mm Light source: Full screen or arrow Diameter of single lamp: 300、400mm Power: 5-24W Voltage: 220V Weight: About 10KG Sign: Customization: Yes Material: Aluminum-alloy plate + aluminum slot Category of reflective coating: Super High Level, High Level, Diamond Level Background color: Yellow, blue, or white Thickness: 1.2、1.5、2、3mm |
Remarks:
The above are only conventional parameters. Customization is available according to user requirements. |
|
Price description:
Since street lamps are non-standard products that can be customized with different heights, power, etc. according to user requirements, no factory has a fixed price list. Please first choose the style, and tell us your simple requirements, or tell us your use environment; then we will recommend relevant style and parameters for you and offer you a quote. For specific price consultation, please contact us. |
