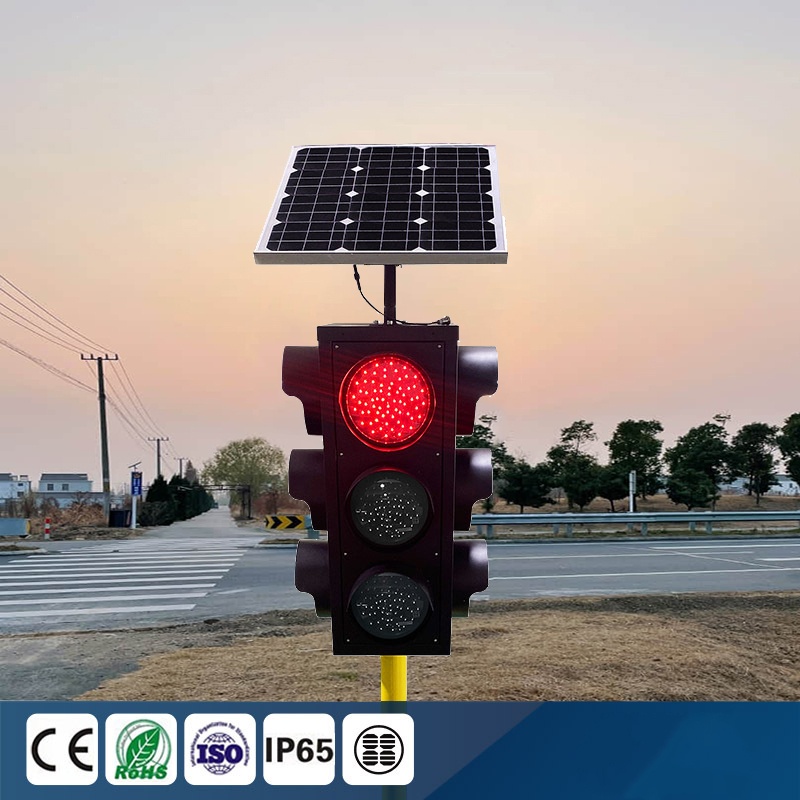

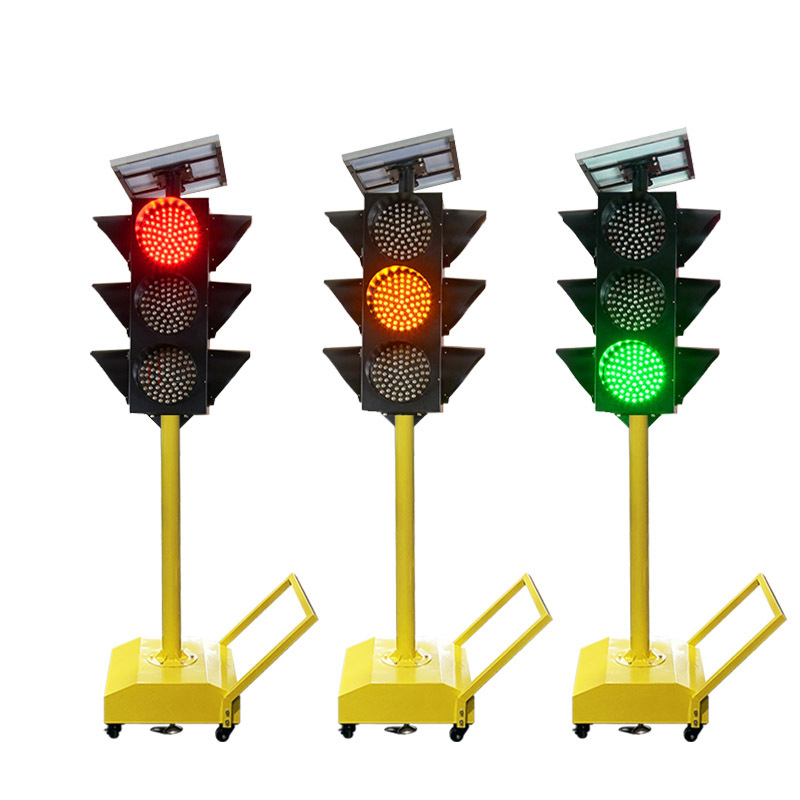

Traffic Warning Solar LED Light with Mobile Trolly

Take H 6.5m + L 6m as an example:

Lamp pole

Steel:Q235A

Diameter of upright rod: 220-280mm

Thickness of upright rod: 5mm

Diameter of horizontal rod: 100-200mm

Thickness of horizontal rod: 4mm

Diameter of bottom flange: 550mm

Thickness of bottom flange: 18mm

Connecting flange: 300*300mm

Welding mode: Automatic submerged-arc welding

Anti-corrosion treatment: Pickling + internal and external hot galvanization + passivation + electrostatic plastic spraying

Thickness of zinc coating: ≥86um

Thickness of sprayed plastic coating: ≧100 um

Appearance: Smooth surface, hardness ≧ 2H

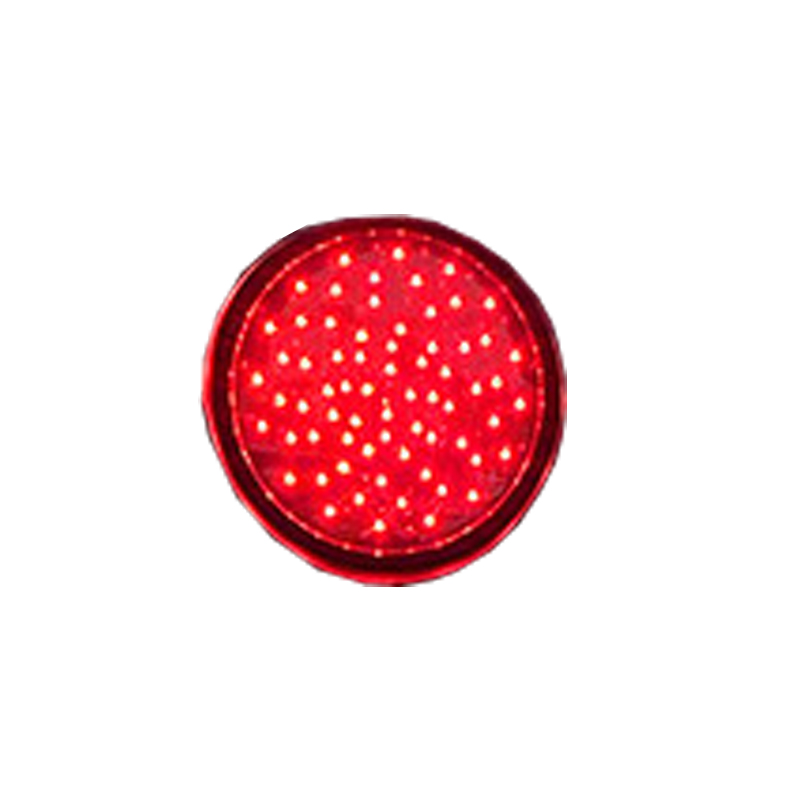

Traffic light:

Form: Combination of red, green, and yellow

Housing: Aluminum alloy or PC

Dimensions: 1050*350mm

Light source: Full screen or arrow

Diameter of single lamp: 300、400mm

Power: 5-24W

Voltage: 220V

Weight: About 10KG

Sign:

Customization: Yes

Material: Aluminum-alloy plate + aluminum slot

Category of reflective coating: Super High Level, High Level, Diamond Level

Background color: Yellow, blue, or white

Thickness: 1.2、1.5、2、3mm

Remarks:

The above are only conventional parameters. Customization is available according to user requirements.

Price description:

Since street lamps are non-standard products that can be customized with different heights, power, etc. according to user requirements, no factory has a fixed price list.

Please first choose the style, and tell us your simple requirements, or tell us your use environment; then we will recommend relevant style and parameters for you and offer you a quote.

For specific price consultation, please contact us.
