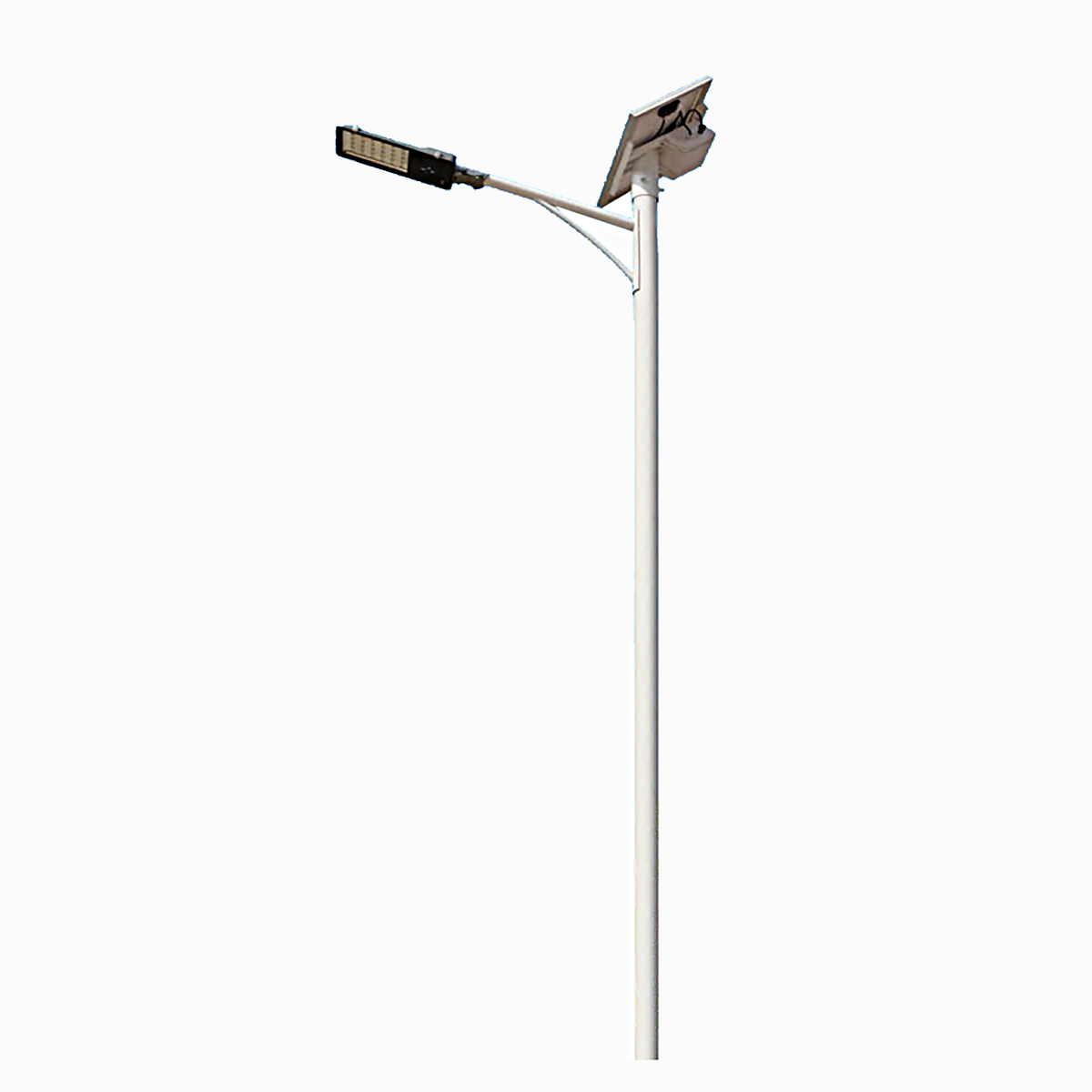

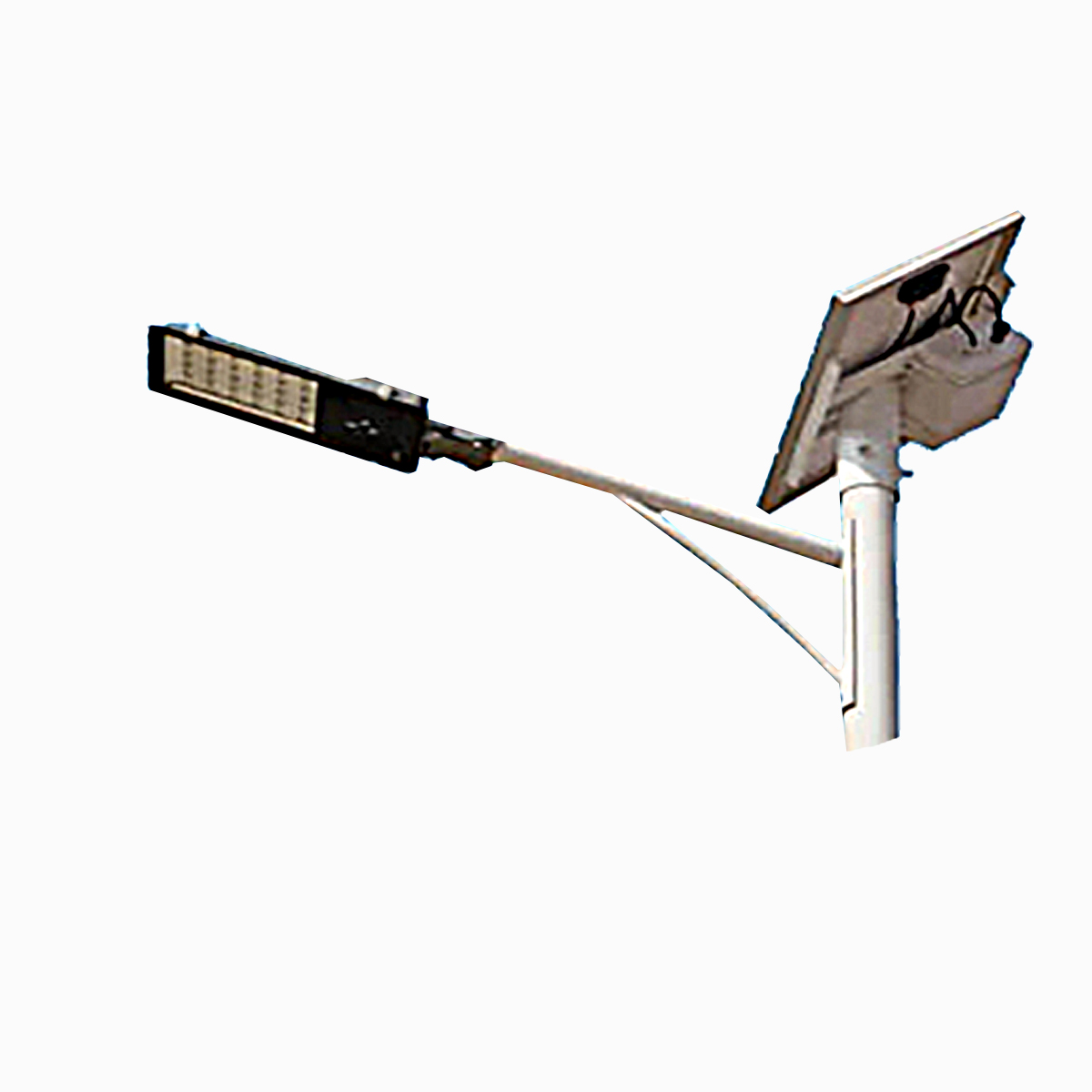

High quality Outdoor Waterproof IP65 Street Light Solar Led Street Lamps For Highway

Steel: Q235A

Height: 6m

Upper diameter: 60mm

Lower diameter: 140mm

Thickness of lamp pole: 2.5mm

Side length of bottom flange: 260*260mm

Thickness of bottom flange: 12mm

Cantilever diameter:60mm

Cantilever length:1.2m

Cantilever thickness: 2.3mm

Welding mode: Automatic submerged-arc welding

Anti-corrosion treatment: Pickling + internal and external hot galvanization + passivation + electrostatic plastic spraying

Thickness of zinc coating: ≥86um

Thickness of sprayed plastic coating: ≧100um

Appearance: Smooth surface, hardness≧2H

Lamp

Lamp dimensions:700×320×7.5mm

Lamp material: High-quality aviation aluminum + tempered glass

Heat dissipation system: Heat conduction by high-quality aviation aluminum

Protection grade: IP65

Light-emitting angle: 110°-120°

Light source power: 40W

Rated voltage: 12V

Type of light source: Philips LED chip

Luminous power: 110-120Lm/W

Color temperature: 3000-6500

Average illumination: ≥25LUX

Light color: normal white/warm white

Operating ambient temperature: －40℃～＋50℃

Type: Mono-crystalline silicon, polysilicon

Material: Aluminum-alloy frame + tempered glass + EVA + cell + back sheet + waterproof junction box

Power: 100W

Operating temperature: 50℃

Open-circuit voltage (Voc): 21.6V

Maximum power voltage (Vmp): 17.2V

Short-circuit current (Isc): 5.8A

Maximum power current (Imp):5.0A

Weight: 8kg

Overall dimensions (mm): 670×990×40mm

Lithium battery

Capacity: 40AH

Nominal voltage: 12V

Charge voltage: 12.75V

Number of cycles: 500

Protection function: With charging and discharging protection plate

Case: Aluminum alloy

Weight: 1.5KG

Controller

Power: 40W

Output current: 2.0A

Temperature compensation: －5Mv/℃/2V, compensation for charge voltage and over-discharge voltage

Charging control: PWM (pulse width modulation)

Constant-current output: PWM intelligent high-frequency soft modulation

Weight: 0.14KG

The above are only conventional parameters, and the commonly used height and power of users are 6--12m and 30--150W, respectively. Lamps with different heights, power, and diameters can be customized according to user requirements and use environment.

Since street lamps are non-standard products that can be customized with different heights, power, etc. according to user requirements, no factory has a fixed price list.

Please first choose the style, and tell us your simple requirements, or tell us your use environment; then we will recommend relevant style and parameters for you and offer you a quote.

For specific price consultation, please contact us.
